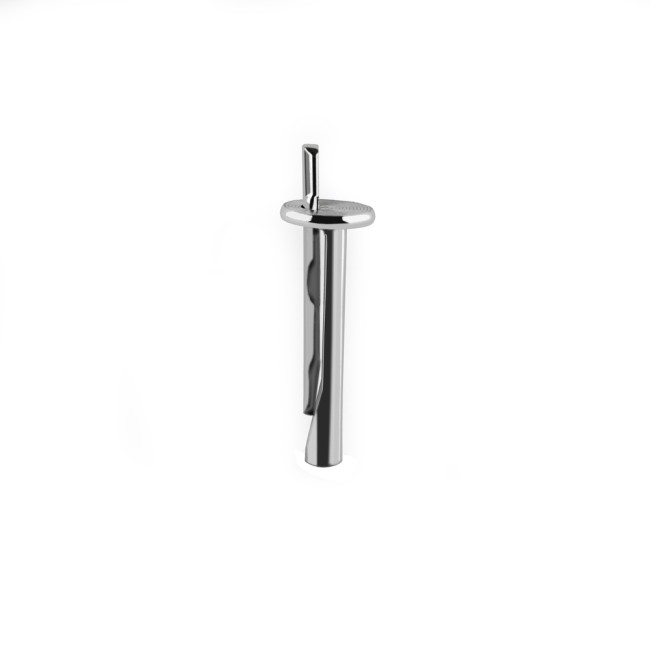

Nail Anchor
- The nail anchor, crafted from zinc-plated steel, serves as a push-through anchor. It is specifica ly designed and approved for securely fixing non-load-bearing systems in concrete.
- Code:NLA
Krafthaus nail anchor is crafted from zinc-plated steel and serves as a push-through anchor. The design
and approval specifically target the secure fixing of non-load-bearing systems in concrete. The NLA-06
facilitates quick installation by pushing it through the designated hole and then hammering it into the
drilled hole. As the expansion wedge is driven flush with the nail head, the nail anchor expands
effectively against the hole wall. This anchor is well-suited for securing wire and nonius hangers, air
lines, and metal profiles with efficiency and reliability.
Types of substrates on which these fasteners can be installed:
Cracked concrete ranging from C20/25 to C50/60, suitable for multiple fixings of non-load-bearing
systems and also Concrete C12/15 Natural Stone with dense structure
Wire and nonius hangers, ventilation systems, slats, metal profiles, perforated tapes,
sub-structures made of metal
- The simple active principle enables cost-effective installation using a hammer set.
- The flush-sunk expansion nail signifies that the anchor has fully expanded, thereby ensuring minimal movement under load.
- The two-step installation process (first the nail head, then the expansion pin) ensures accurate placement, particularly in narrow drill holes, and guarantees high safety during use.
- Easy installation and time-saving
