Drop-In Anchor
- Drop-in anchors are designed for expansion by impact anchor with female thread for use in non-cracked concrete.
- Code:DRP

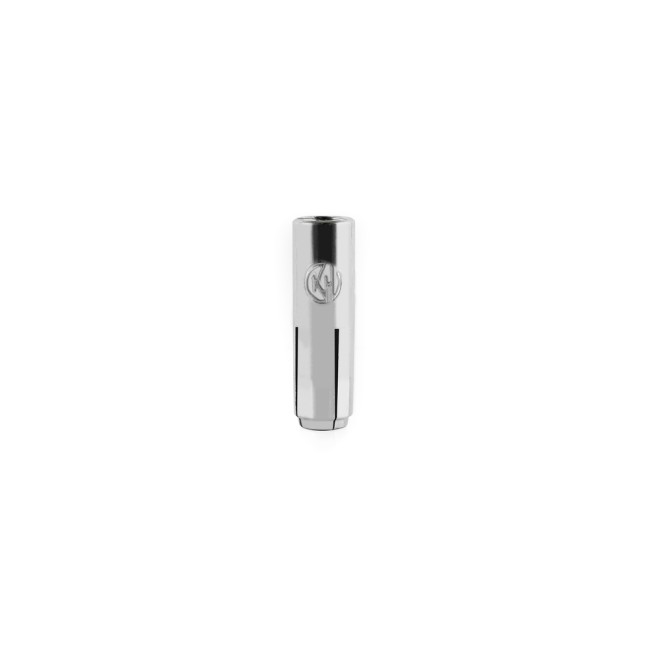

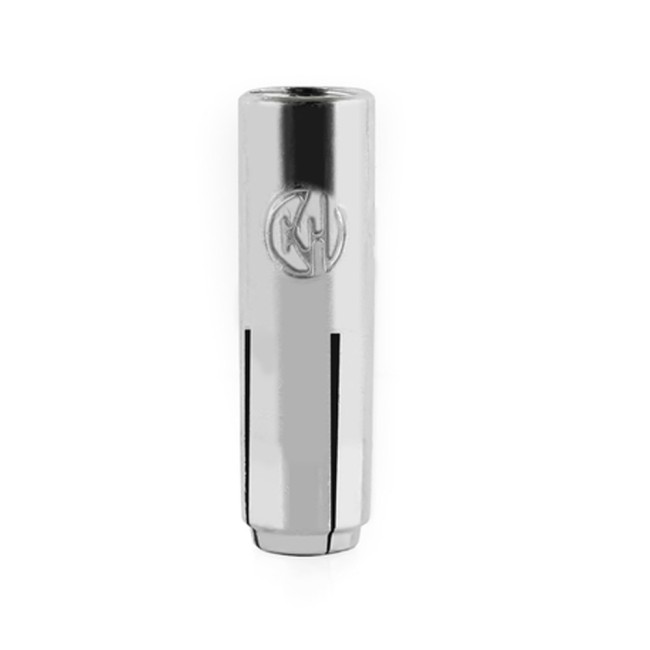

Short drop-in anchor made of zinc-plated steel includes a driven expansion cone, female thread, and a
drop-in sleeve with collar. The drop-in sleeve's expansion area is separated into four parts by lengthwise
cutouts. Sleeves are made from carbon steel with zinc plating. Short drop-in anchor, applications in
concrete and hollow core slabs. The process of fixing in a substrate involves utilizing a drop-in anchor
setting tool to drive an expansion cone into the sleeve to a predetermined depth. The drop-in anchors serve
as an expansion component for fasteners equipped with metric threads, such as metric bolts, threaded
rods, hanger bolts, etc.
Recommended for substrates: Concrete class C20/25 to C50/60 non-cracked (Structural).
Concrete class C12/15 to C50/60 (Non-structural)
Material:
Sleeve: Carbon steel, zinc-plated ≥ 5 μm
Cone: Carbon steel, zinc-plated ≥ 5 μm
- Fixings in suspended ceilings, sprinklers, and ventilation systems.
- Structural fixings and fittings in interiors and/or exteriors.
- Fixings of threaded rods.
- Easy installation.
- Working by deformation.
- Use in non-cracked concrete.
- Use for medium-heavy duty loads.
- Pre-installation of the fixture.
- For static and quasi-static loads.
- Can be uninstalled, leaving the surface clear (leaves the expansion item and the cone inside the drill hole).
